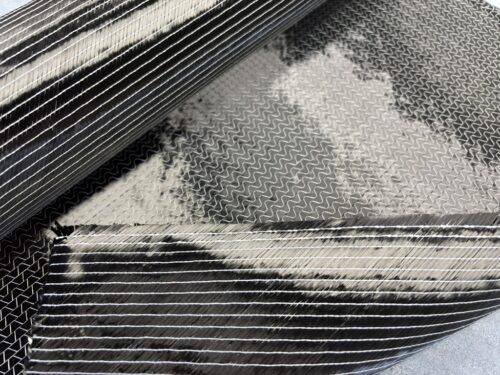

+45°/ -45° Biaxial Carbon Fiber Cloth-CABX400

Biaxial Carbon Fiber Cloth is a type of fabric used in the production of composite materials. It is made by weaving carbon fibers together in two directions, resulting in a grid-like pattern with two primary axes. This design provides balanced strength and stiffness properties in both the lengthwise (warp) and widthwise (weft) directions.

The biaxial nature of this carbon fiber cloth allows for efficient load distribution, making it suitable for applications that require enhanced structural integrity and performance. It offers high tensile strength, excellent dimensional stability, and exceptional resistance to corrosion and fatigue.

Categories: ,

Advantages of using multiaxial Carbon fabric

  • Because the fibres are always straight and non-crimped and also the fact that several orientations(0°, 45°, 90°) of fibres are possible on one fabric, these multiaxial fabrics are able to offer the maximum mechanical strength.
  • Since Multiaxial fabrics are thicker and with multiple fibre orientations, fewer layers are needed to build a laminate. This results in a faster building speed and saving labor costs as well.
Product No. : CABX400
Material Type : Carbon 12K
Stiching type & fiber orientation : Biaxial +45°/ -45°
Fabric Weight (g/m2） : 406
0° Layer（g/m2） : /
+45°Layer（g/m2） : 200
+90°Layer（g/m2） : /
-45°Layer（g/m2） : 200
Polyester Yarn (g/m2） : 6

1.27 meter in width; Each roll is 50/100 meters.

Fiber brands can be Toray, Formosa, Dowaksa, Mitsubishi depending on your requirement.
